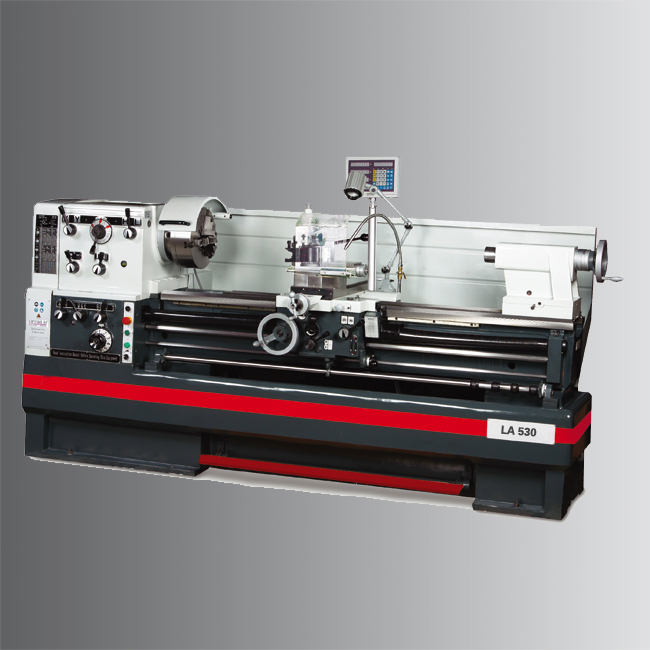

TYK530/TYK600/TYK680型 車床
型號 Model TYK530x1500/2000 TYK600x1500/2000 TYK680x1500/2000 產品編號 Code No. P4253400/P4253500 P4260400/P4260500 P4268400/P4268500 加工范圍 Capacity 床身上*大回轉直徑 Swing over bed Φ530mm Φ600mm Φ680mm 拖板上*大回轉直徑 Swing over cross slide Φ329mm Φ399mm Φ479mm 馬鞍上*大回轉直徑 Swing in GAP(D×W) Φ765×218mm(D1-8)/Φ765×240mm(A1-8) Φ838mm×218mm(D1-8)/Φ835×240mm(A1-8) Φ918mm×218mm(D1-8)/Φ915×240mm(A1-8) 主軸中心高 Height of center 265mm 300mm 380mm 兩頂尖中心距 Distance between centers 1500/2000mm 1500/2000mm 1500/2000mm 床身寬度 Width of bed 400mm 400mm 400mm 主軸 Headstock 主軸通孔直徑 Spindle bore Φ82 Φ82 Φ82 主軸端部 Spindle nose D1-8 or A1-8 D1-8 or A1-8 D1-8 or A1-8 主軸內外錐度 Spindle morse taper in...
分享
相關產品
描述
| 型號 | Model | TYK530x1500/2000 | TYK600x1500/2000 | TYK680x1500/2000 |
| 產品編號 | Code No. | P4253400/P4253500 | P4260400/P4260500 | P4268400/P4268500 |
| 加工范圍 | Capacity | |||
| 床身上*大回轉直徑 | Swing over bed | Φ530mm | Φ600mm | Φ680mm |
| 拖板上*大回轉直徑 | Swing over cross slide | Φ329mm | Φ399mm | Φ479mm |
| 馬鞍上*大回轉直徑 | Swing in GAP(D×W) | Φ765×218mm(D1-8) /Φ765×240mm(A1-8) |
Φ838mm×218mm(D1-8) /Φ835×240mm(A1-8) |
Φ918mm×218mm(D1-8) /Φ915×240mm(A1-8) |
| 主軸中心高 | Height of center | 265mm | 300mm | 380mm |
| 兩頂尖中心距 | Distance between centers | 1500/2000mm | 1500/2000mm | 1500/2000mm |
| 床身寬度 | Width of bed | 400mm | 400mm | 400mm |
| 主軸 | Headstock | |||
| 主軸通孔直徑 | Spindle bore | Φ82 | Φ82 | Φ82 |
| 主軸端部 | Spindle nose | D1-8 or A1-8 | D1-8 or A1-8 | D1-8 or A1-8 |
| 主軸內外錐度 | Spindle morse taper in nose,in sieeve | ME90/MT5 | ME90/MT5 | ME90/MT5 |
| 主軸轉速級數 | Spindle speeds number | 12 | 12 | 12 |
| 主軸轉速范圍 | Spindle speeds range | 20-1600rpm | 20-1600rpm | 20-1600rpm |
| 進給及螺紋 | Feeds and threads | |||
| 車刀桿*大尺寸 | Cutting tool max.section | 25x25mm | 30x30mm | 25x25mm |
| 中拖板總行程 | Total travel of cross slide | 320mm | 358mm | 438mm |
| 小拖板總行程 | Total travel of top slide | 200mm | 200mm | 200mm |
| 英制螺紋范圍 | Threads imperial pitches | 4-112TPI | 4-112TPI | 4-112TPI |
| 公制螺紋范圍 | Threads metric pitches | 0.25-7mm | 0.25-7mm | 0.25-7mm |
| 尾架 | Tailstock | |||
| 尾座套筒行程 | Total travel of tailstock quill | 180mm | 180mm | 180mm |
| 尾座套筒直徑 | Tails stock quill | Φ80 | Φ75 | Φ80 |
| 尾座套筒內孔錐度 | Taper tailstock quill | MT5 | MT5 | MT5 |
| 電機 | Motor | |||
| 主軸電機 | Spindle drive motor | 7.5KW | 7.5KW | 7.5KW |
| 冷卻泵電機功率 | Coolant pump motor | 0.09KW | 0.09KW | 0.09KW |
| 外形尺寸及重量 | Dimension and weight | |||
| 凈重 | Net weight | 2750/3010kg | 2820/3080kg | 2900/3160kg |
| 毛重 | Cross weight | 3090/3400kg | 3180/3490kg | 3260/3570kg |
| 包裝尺寸 | Packing size | 3335x1110x1900mm | 3335x1110x1900mm | 3270/3770x1150x1900mm |
