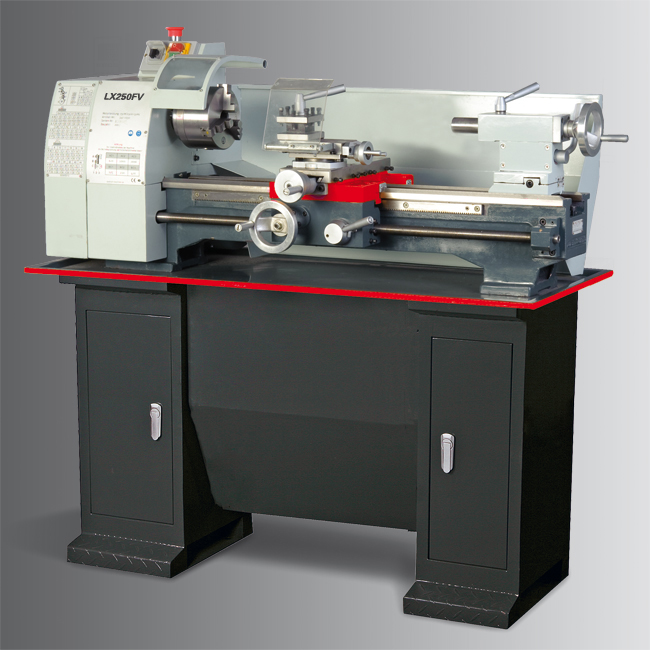

TYK250F/TYK250FV型 小型車床
型號 Model TYK250F TYK250F V 產品編號 Code No. 4125102(230V) 4425100 產品編號 Code No. 4125103(400V) 加工范圍 Capacity 床身上*大回轉直徑 Swing over bed ø250mm ø250mm 拖板上*大回轉直徑 Swing over cross slide ø150mm ø150mm 兩頂尖中心距 Admits between 550mm 550mm 主軸中心高 Center height 125mm 125mm 床身寬度 Width of bed 135mm 135mm 主軸 HEADSTOCK 主軸通孔直徑 Spindle bore ø21mm ø21mm 主軸內孔錐度 Taper of spindle bore MT3 MT3 主軸轉速范圍 Range of spindle speed 125-2000rpm 150-2200rpm 進給及螺紋 FEEDS AND THREADS 小拖板*大行程 Top slide travel 75mm 75mm 中拖板*大行程 Cross slide travel 120mm 120mm 車刀刀桿*大截面 Max.Section of tool 12x12mm 12x12mm 公制螺紋范圍 Threads metric pitches 0.4-3.5mm 0.4-3.5mm 英制螺紋范圍 Threads imperial pitches 8-44TPI 8-44T...
分享
相關產品
描述
| 型號 | Model | TYK250F | TYK250F V |
| 產品編號 | Code No. | 4125102(230V) | 4425100 |
| 產品編號 | Code No. | 4125103(400V) | |
| 加工范圍 | Capacity | ||
| 床身上*大回轉直徑 | Swing over bed | ø250mm | ø250mm |
| 拖板上*大回轉直徑 | Swing over cross slide | ø150mm | ø150mm |
| 兩頂尖中心距 | Admits between | 550mm | 550mm |
| 主軸中心高 | Center height | 125mm | 125mm |
| 床身寬度 | Width of bed | 135mm | 135mm |
| 主軸 | HEADSTOCK | ||
| 主軸通孔直徑 | Spindle bore | ø21mm | ø21mm |
| 主軸內孔錐度 | Taper of spindle bore | MT3 | MT3 |
| 主軸轉速范圍 | Range of spindle speed | 125-2000rpm | 150-2200rpm |
| 進給及螺紋 | FEEDS AND THREADS | ||
| 小拖板*大行程 | Top slide travel | 75mm | 75mm |
| 中拖板*大行程 | Cross slide travel | 120mm | 120mm |
| 車刀刀桿*大截面 | Max.Section of tool | 12x12mm | 12x12mm |
| 公制螺紋范圍 | Threads metric pitches | 0.4-3.5mm | 0.4-3.5mm |
| 英制螺紋范圍 | Threads imperial pitches | 8-44TPI | 8-44TPI |
| 尾座 | QUILL | ||
| 尾座套筒直徑 | Quill diameter | ø30mm | ø30mm |
| 尾座套筒行程 | Quill travel | 70mm | 70mm |
| 尾座套筒內孔錐度 | Quill taper | MT2 | MT2 |
| 橫向調整 | Cross adjustment | ±5mm | ±5mm |
| 電機 | MOTOR | ||
| 主電機功率 | Main motor power | 750W | 1100W |
| 外形尺寸及重量 | DIMENSION AND WEIGHT | ||
| 外形尺寸（長x寬x高） | Overall dimension(LxWxH) | 1110x500x500mm | 1110x500x500mm |
| 包裝箱尺寸（長x寬x高） | Packing size(LxWxH) | 1200x560x570mm | 1200x560x570mm |
| 凈重/毛重 | Net weight/Gross weight | 127/145kg | 127/145kg |
